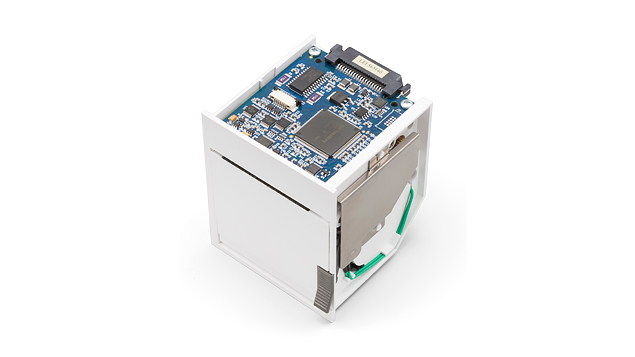

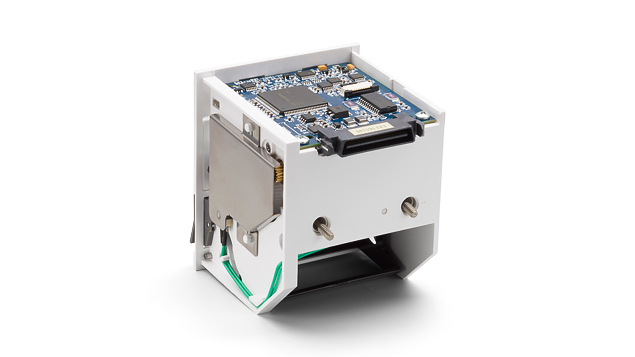

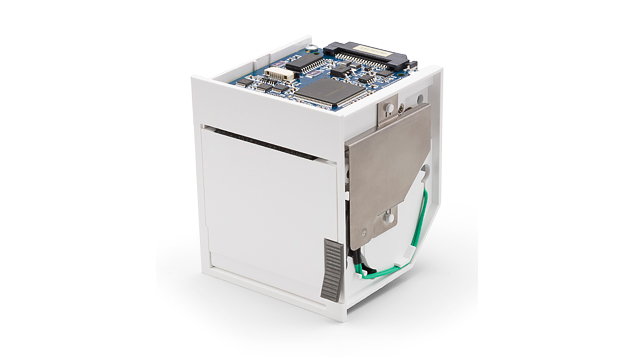

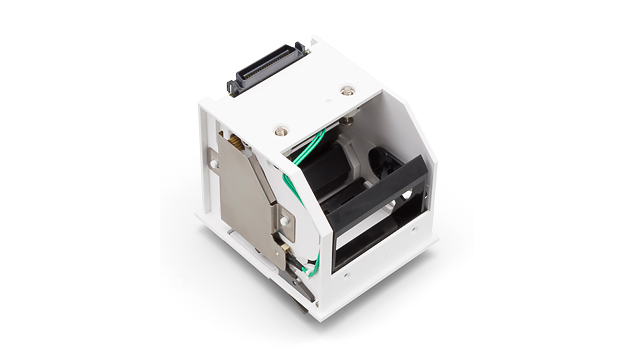

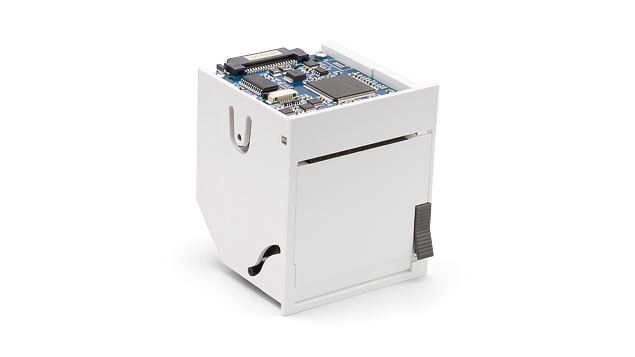

The XE-50 – 50 mm Thermal Printer and Chart Recorder, Panel Component is JADAK’s rapid-integration printing solution designed to fit 50 mm diameter x 50 mm width thermal printing paper (2” x 2”), equipped with warning notifications for undesirable conditions, and error messages. Highly cost-effective and with low power consumption, this small, lightweight component has been slimed to reduce depth while maintaining standard 50 mm capacity.
Up to four real-time waveforms can be printed simultaneously in recorder mode with accompanying gridlines and text, and then transition seamlessly to bitmap graphics, 1D/2D barcodes, and logos printed at 200 dpi resolution.
Further options for configuring output includes six built-in fonts with two font sizes, and four printing orientations (90°, 180°, and 270°). The XE-50 can trend speeds down to 50 mm/hour (up to 50 mm/sec) during recording. Interfacing is always compatible with either USB or logic level serial up to 921,600 bps. Included is a complete development kit, with software, paper, cables, and manuals.
Applications
- Component Printer for OEM Designs
- Print Output Designed for Medical and Scientific Measurements
Features and Benefits
- Industry Standard 50 mm Architecture
- Lightweight, Compact and Tight Design for Space Savings
- Multilingual Downloadable Font Options
- PC-Based Development Kit for Custom Designs
