Fully customizable machine vision-powered area scan cameras tailored to original equipment manufacturers’ (OEMs’) specific requirements.

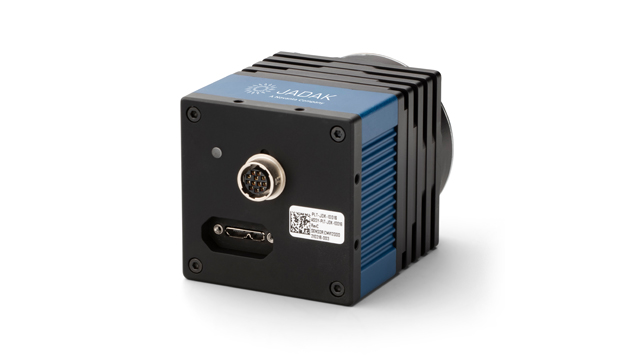

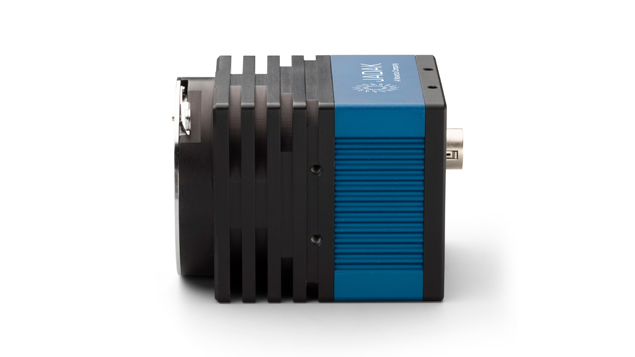

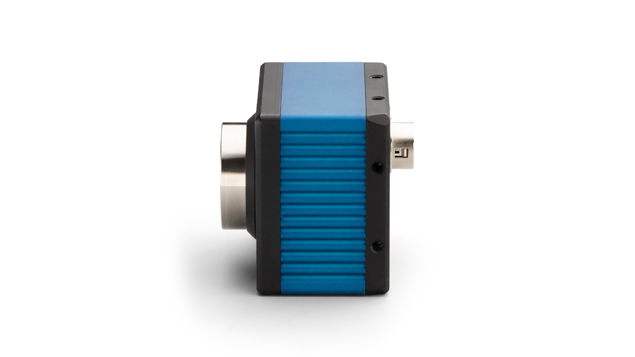

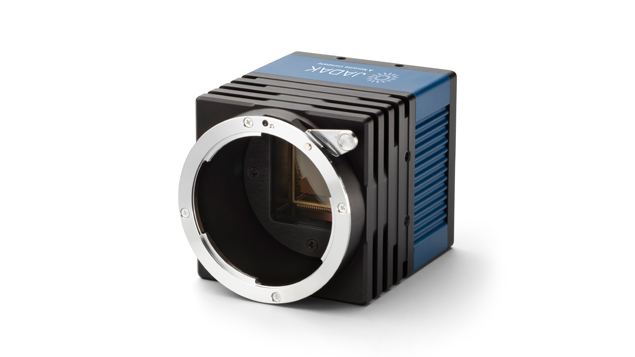

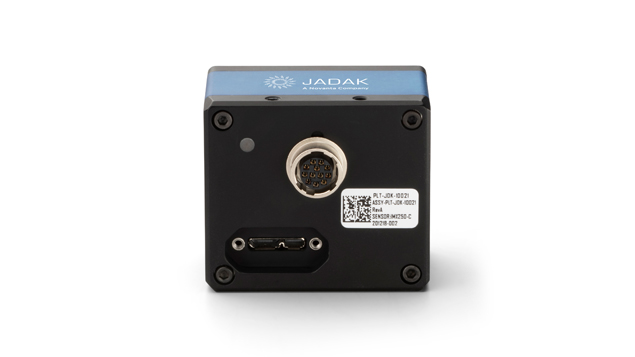

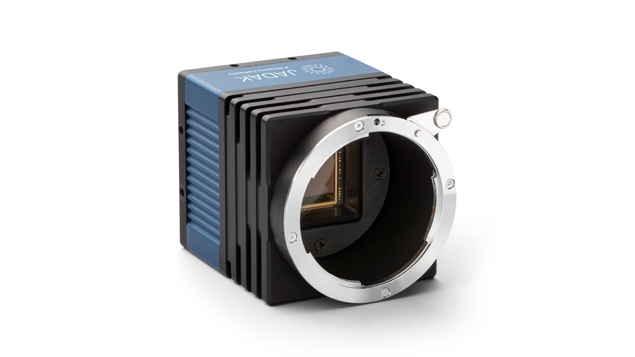

JADAK’s Allegro USB Smart Camera line of area scan cameras enable superior image quality and high-speed image capture in fast-moving, real-time machine vision applications. With low upfront costs, fast time-to-market, and rapid prototyping, our Allegro USB area scan camera line uses standard hardware that can be customized in line with your unique requirements.
Contact our expert machine vision engineers today to find out more about our area scan cameras.
Fully Integrated Area Scan Cameras
Customizable, high-performance streaming area scan cameras that offer a high-quality yet economical machine vision solution.
- Surgical visualization
- Microscopy
- Endoscopy
- Industrial vision
- Pre-analytical and analytical in-vitro diagnostics
Our area scan cameras are easy to set up and install, making them invaluable in accelerating rapid development to market, enhancing performance applications and contributing to increased margins. Our highly experienced engineering team can customize each area scan camera to OEMs’ exact specifications.
Features and Benefits
- Superior Image Processing: Features LightWise Image Processing for superior image quality. High-resolution capability, and advanced image processing available such as High Dynamic Range (HDR), Multi-ROI, Tracking and Transformation (Allegro CMV 12000 only).
- High-Speed: High-performance modules use parallel processing to maintain sensor speed.
- Fully Customizable: Engineer-to-engineer collaboration allows for complete customization. Mix and match area scan camera modules to handle different sensor and pixel sizes. C-mount, CS-mount and F-mount options available.
- Scalable: Large Field Programmable Gate Array (FPGA) and option for field upgradabilty enables customization and scalability, evolving with your organization’s specific image processing requirements.
- Versatile Applications: Area scan cameras can be used across multiple industries, including manufacturing automation, in-vitro diagnostics, sample tracking, and more.
Specifications
- Supports USB3 Vision™ interface up to 400 MB/s
- 256 MB on-board frame buffer memory
- Heavy duty aluminum and sealed sensor construction in a compact lightweight form factor
- Modular architecture that supports multiple sensors, including an extensive line of Sony sensors
- Pre-drilled mounting holes for convenience (tripod mount available)
- Approx. 126 grams without optics
The JADAK Difference
With decades of medical and industrial engineering expertise, JADAK is a market leader and primary supplier of custom machine vision, RFID, barcode, printing, and color and light measurement products and services for original equipment manufacturers. Our team of advanced-degree engineers become an extension of your team, gain a deep understanding of your application, then, develop and implement a solution that’s a precise fit. All supported by full lifecycle management of your product.
Support Documentation
Overcoming semiconductor wafer defect challenges with advanced vision systems and deep learning
Powerful vision systems using modular FPGA-based smart cameras
The Future of Surgical Visibility and Navigation for Enhanced Patient Safety
INFOGRAPHIC: Deep learning for critical diagnostic efficiency
Machine Vision Area Scan Camera FAQs
Line scan cameras use image processing software to capture an image line by line to gradually build up a complete picture. In contrast, area scan cameras are able to capture an object in a single image. Both types of camera have different applications, with area scan cameras particularly effective for capturing images of slow-moving objects, for example on a manufacturing production line.
Streaming area scan cameras can be used in a variety of applications across multiple industries, including the medical and manufacturing sectors. A machine vision area scan camera can play a key role in in-vitro diagnostic testing, endoscopy and microscopy procedures, surgical imaging, and in industrial vision applications.
The benefits of using JADAK’s machine vision area scan cameras include high-speed image processing, superior image quality, versatility and flexibility, and the ability to customize the technology to your business’ unique needs. Area scan cameras can also be a more cost-effective option than line scan cameras
